Segger Devkits

Segger Starter Kits

"Ready-to-go" starterkits allow you to work on real hardware and get familiar with emWin as well as with the microcontroller and other development tools

The following boards are for test and demonstration purposes only. They are not designed as production system

They have been designed primarily to test and demonstrate the emWin software, and they can be used to get familiar with our software. They can be shipped with demonstration software which is "ready-to-go".

However, these boards may also be used to get familiar with the microcontroller and the other development tools such as the debugging software and the "C"-compiler. Complete schematic is included

starter kit	microcontroller	LCD controller	Display type
SK "Harry"	Renesas M30624	Samsung KS0713	monochrome 128x64
SK "Armin" mono	Renesas M30803	SED 13705	monochrome 320x240
SK "Armin" colour	Renesas M30803	SED 13705	passive colour 320x240
SK "Armin" TFT	Renesas M30803	SED 13705	TFT 320x240
SK "Axel 2" mono	NEC V850E/SA2	SED 13806	monochrome 320x240
SK "Axe 2l" colour	NEC V850E/SA2	SED 13806	passive colour 320x240
SK "Axel 2" TFT	NEC V850E/SA2	SED 13806	TFT 320x240
SK "Axel 2" VGA	NEC V850E/SA2	SED 13806	none - VGA output -
SK "Berni"	Renesas M30624	none	monochrome 160x100
Touch panel	touch panel for SK "Armin" or SK "Axel 2" support for monochrome 320x240 or 1/4 VGA passive colour display

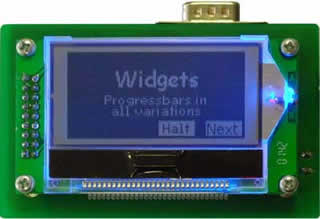

Harry
	• Starter board with Renesas M30624 CPU and Samsung KS0713 LCD controller (incl. schematic and documentation) • monochrome LCD (128x64 pixel) • emWin Demo program (source code will be provided) • emWin object code for M16C60 • Simulation with demo program • Renesas NC30 compiler trial version
ARMIN
	• Starterboard with Renesas M30803 CPU and SED 13705 LCD controller (incl. schematic and documentation) • monochrome LCD (320x240 pixel; either monochrome, 1/4 VGA colour display or TFT) • emWin Demo program (source code will be provided) • emWin object code for M16C80 • Simulation with demo program • 30 days "C"-compiler trial version
Axel 2
	• Starterboard with NEC V850E/SA2 CPU and SED 13806 LCD controller (incl. schematic and documentation) • LCD (320x240 pixel; either monochrome, 1/4 VGA colour display, TFT or none - VGA output) • emWin Demo program (source code will be provided) • emWin object code for V850 • Simulation with demo program
Berni
	• Starterboard with Renesas M30624 CPU without LCD controller (incl. schematic and documentation) • LCD (available with 160x100 pixel monochrome display) • emWin Demo program (source code will be provided) • emWin object code for M16C • Simulation with demo program
